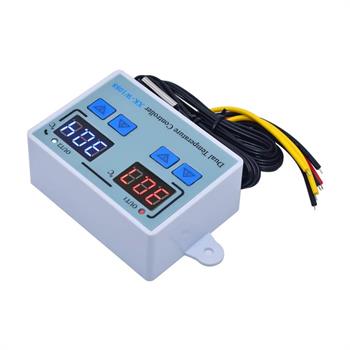

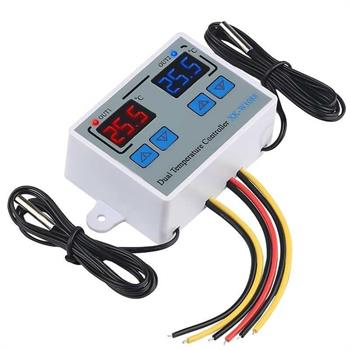

ترموستات دیجیتالXK-W1088 یک ماژول کنترل دما بسیار دقیق است.
به کمک این ماژول می توانید دمای محیط را به سادگی کنترل کنید.
این ماژول دارای 2 کانال مختلف برای کنترل دو رله مختلف می باشدو بر روی این ماژول کلیدهایی جهت تنظیم حالت کاری و رله ،برای فعال سازی در دمای تنظیم شده قرارگرفته است.
XK-W1088 AC 220V Dual Digital Thermostat Temperature Controller 2 Relay Output with dual Dual Probe for incubator
Features
Heating or cooling control
Red and blue dual led display
Independent Dual-way temperature controller
Temperature display resolution 0.1

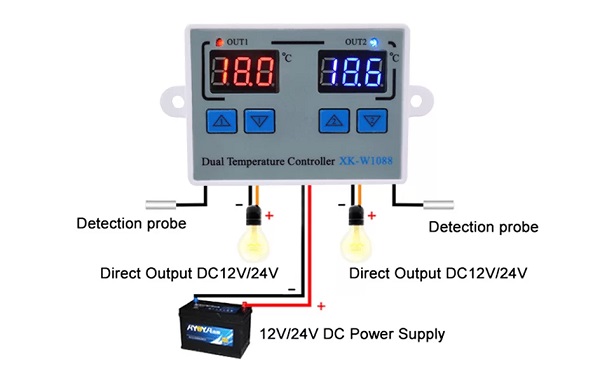

Directly power output
Support high (low) temperature alarm and support for power loss
The application range is like home temperature control, farm, various cold storage, greenhouse,aquarium, etc
Specifications
Display Type: Digital
Material: ABS+PCB
Style: Standing Station
Temperature sensor: NTC 10K
Senor length:1.0m
Temperature measuring range:-55 ° C ~ 120 ° C
Resolution: 0.1 ° C
Accuracy: ±1° C
Power supply: 110-220VAC 50/60Hz
Power consumption: <3W
Storage temperature: -30 ° C ~ 75 ° C
Relative humidity: 20% ~ 85% No condensate
Relay contact capacity: Two Relay Max 10A, Direct Output

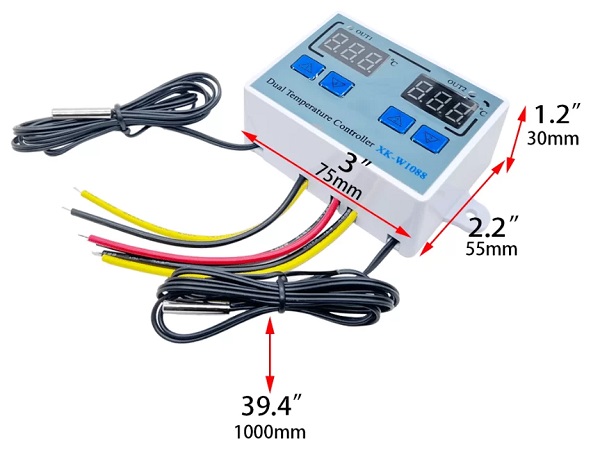

Item Size: 7.5*5.5*3.1 cm
Item Weight: 80g
Set startup temperature
Press the “up” button once to display the starting temperature. Long press the “up” button for about 3 seconds,The required temperature can be set by the up and down keys
Set the stop temperature
Press the button once to display the stop temperature. Long press the button for about 3 seconds and the stop temperature number flashes. The required temperature can be set by the up and down keys
Press “Up 1” Button & “Up 2″Button at the same time to setting mode
How to restore factory Settings
press the “Down 1” and “Down 2” button at the same time, the factory setting is restored
Temperature correction
Press “Up 1 ”and “Down 1 ”at the same times for 3 second. positive value = measured value + corrected value group 2 temperature correction is the same method
Note
Heating Mode–Start temperature<Stop temperature
Cooling Mode–Start temperature>Stop temperature
Code P0 Function Compressor 1 delay time Set Range 0-60min Default 0min
Code P1 Function Compressor 2 delay time Set Range 0-60min Default 0min
Code P2Function High temperature alarm value Set Range -55~120°C/-67~248°F Default 120°C/248°F
Code P3 Function Low temperature alarm value Set Range -55~120°C/-67~248°F Default -55°C/-67°F
